DOI: 10.20937/ATM.53411

Received: August 2, 2024; Accepted: January 5, 2025

Predictive models of incident solar radiation and its reflectance on surfaces with anti-weed screens

RESUMEN

En agricultura, las longitudes de onda de interés son la radiación UV A + B y la radiación fotosintéticamente activa. Los agricultores utilizan diferentes técnicas para mejorar la distribución de la radiación en los cultivos, siendo una alternativa la instalación de mallas antimaleza. El análisis del balance de radiación puede realizarse mediante diferentes métodos predictivos, que son una función de la geometría solar, el clima y las variables meteorológicas. El objetivo de este estudio fue generar modelos de regresión múltiple comparados con el modelo Holt-Winters en series temporales para analizar y estimar la radiación incidente y su reflectancia sobre superficies cubiertas con malla blanca y negra y un área descubierta. Los resultados indican un aumento de la radiación y de la temperatura entre los días julianos 116 y 273, disminuyendo significativamente con la nubosidad. La malla de polipropileno blanco antimaleza reflejó una mayor cantidad de radiación solar. Por otro lado, los modelos de regresión múltiple presentaron mejor precisión para la predicción de la radiación solar incidente y su reflectancia en comparación con el modelo de Holt-Winters en series de tiempo. Sin embargo, cada modelo proporciona un análisis diferente de la radiación, por lo que pueden ser complementarios en la toma de decisiones con fines agrícolas.

ABSTRACT

In agriculture, the wavelengths of interest are UV A + B radiation and photosynthetically active radiation. Different techniques can be used by farmers to enhance radiation distribution on crops, with one alternative being the installation of polypropylene anti-weed nets. The analysis of the radiation balance can be performed using different predictive methods, which are a function of solar geometry, climate, and weather variables. The objective of this research was to develop multiple regression models for comparison with the Holt-Winters model in time series to analyze and estimate incident radiation and its reflectance on surfaces covered with white and black polypropylene anti-weed nets and soil without cover. The results indicate an increase in radiation and temperature between Julian days 116 and 273, decreasing significantly with cloud cover. The white polypropylene anti-weed nets reflected a higher amount of solar radiation. On the other hand, the multiple regression models presented better accuracy for the prediction of incident solar radiation and its reflectance compared to the Holt Winters time series model. However, each model provides a different analysis of radiation, so that they can be complementary in decision making for agricultural purposes.

Keywords: UV A + B radiation, photosynthetically active radiation, multiple regression, time series, Holt-Winters.

1. Introduction

Solar radiation is the primary energy source for the systems that govern the dynamics of the biosphere (Ortiz-Solorio, 2015). In conjunction with other factors, such as water and nutrients, plants can complete their biological cycle under optimal temperature and soil quality (physical and chemical). The impact of these factors on plant growth and development has been analyzed by various research areas, including agronomic sciences, botany, and ecology. However, it is essential to observe and analyze the nature of each factor before considering their study as a whole.

The amount of energy received by the Earth in the exosphere layer is an average of 1353 J m^–2 s (Ortiz-Solorio, 2015); however, approximately 50% of the total energy is received by the Earth’s surface due to atmospheric interference, of which 20% is reflected; clouds absorb 4%; water, dust particles, and O₃ absorb 16%; and the remaining 10% is dispersed in the air (Ben-Othman et al., 2018). In turn, this energy exhibits fluctuations in time and space due to the position of the sun in relation to a geographic location, which is determined by solar geometry parameters including solar height, declination, and azimuth, as well as the solar obliquity angle and solar time (Méndez-Pérez and Gómez-Azpeitia, 2015). The fraction of the resulting energy is again reflected as a function of surface properties, a behavior known as albedo. It allows an understanding of each terrestrial element’s reflectance, energy absorption capacity, and environmental interaction (Wickham et al., 2015).

In agriculture, the study of solar radiation focuses on the transformation of energy into biomass through the process known as photosynthesis, mainly the length of photosynthetically active radiation (PAR) (400 to 700 nm) by interfering with leaf expansion, pigment formation, stomata elongation, and therefore, yield (Zárate-Martínez et al., 2021; Sandoval-Rangel et al., 2022). On the other hand, ultraviolet (UV) lengths A (320 to 400 nm) and B (280 to 320 nm) have presented effects on fruit quality (Quintero-Arias et al., 2021), yield (Lycoskoufis et al., 2022), and interfere in the production of active compounds (Duo et al., 2019) and germination (Foroughbackhack-Pournavab et al., 2019), among others.

Various methods have been used by agricultural technicians to interfere with light interception on leaves (Unigarro et al., 2021). Among these are the selection of population density (Mena-Lorenzo et al., 2018), selective pruning and production in greenhouse systems using plastics to generate better light distribution (Sandoval-Rangel et al., 2022), implementation of artificial lighting systems using fluorescent or LED lamps (Contreras-Avilés, 2020), and installation of mulches. Mulches provide several beneficial effects, such as weed and pest control, moisture, and nutrient retention (Montemayor-Trejo et al., 2018; Sanjuán-Martínez et al., 2022). Orozco-Santos et al. (2023) demonstrated a significant difference in plant biomass when establishing plots with mulches of different colors (white, aluminum, green, and black) compared to bare soil, concluding that the white cover provided the greatest amount of biomass.

Soria et al. (1998) refer to this behavior as the absorption capacity and distribution of energy reflected by each type of surface due to its physical properties and the effect of color, where white surfaces reflect more light (Sánchez and Moreno, 2017) so that the percentage of reflected radiation can be used by plants, favoring photosynthetic and photostimulant processes (Wang et al., 2021). It is essential to establish an analysis method and predictive models to understand the radiation reflectance capacity of different surfaces. These models will be fundamental for selecting materials that optimize plant biomass production.

Some authors, such as Boscaini et al. (2019) and Contreras-Sepúlveda et al. (2021), utilize predictive radiation models based on the formulas of Prescott (1940) and Almorox et al. (2005), primarily for ecological, agronomic, and photovoltaic applications. However, due to the complexity of the fundamental values, researchers have established models based on the relationship between radiation values and the climatic variables of a region (Obando et al., 2019), such as temperature (Camayo-Lapa et al., 2019), cloud cover (Zhou et al., 2024), and wind speed (Estela-Urbina et al., 2019), among others, since these elements have a highly significant relationship, presenting changes during the year.

Fluctuations in radiation and climatic variables are considered in monitoring and analysis techniques for planning various agricultural activities, particularly the establishment of planting and harvesting dates for crops, thus affecting their yield and quality. Estimated values are generated from data acquired by various radiation monitoring instruments, including remote sensing techniques, and essential meteorological variables provided by weather stations, which offer real-time information, enabling the analysis of changes in climatological factors and vegetation development over time (Zuluaga et al., 2021). However, access to the platforms is limited, in most cases, for residents of a locality, so they focus on using established estimation models or the use of easily obtained manual sensors, allowing for accurate data to be obtained by being sensitive to the presence of light. Based on the various predictions, it is possible to design and plan strategies for utilizing solar energy at the local level.

In recent decades, time series analysis has enabled the understanding of seasonal patterns and trends over time (Box et al., 2015). Predictive models for variables of interest organized in terms of time have been developed by authors such as Camayo-Lapa et al. (2019), which differ from traditional predictive models of simple or multiple regression, where variables do not require a temporal order. Likewise, Vesga-Ferreira et al. (2022) mention that, although prediction using known linear techniques can provide accurate data, they may generate greater imprecision because the values of interest over time present a non-constant mean and variance. In conjunction with other characteristics of the time series, various advanced autoregressive methods can be implemented to forecast radiation in a location by collecting and recording past data to predict future events, making it possible to use it in areas of the financial sector, electric utilities, and environment (Yang et al., 2017; Valderrama-Balaguera et al., 2021).

The sequence is analyzed based on the analysis objective and the observed data; in turn, some methods allow for the supplementation of missing data recorded in the sensors due to various technical or human errors (García-Acevedo et al., 2016). The Holt-Winters model, also known as the exponential smoothing model (Bowerman et al., 2007), is used for time series prediction by decomposing it into three components: level (L), trend (T), and seasonality (S). L represents the base value of the time series at a given point in time; T captures the direction and speed of change in the level, while S reflects the repetitive patterns that occur at regular intervals.

Based on analyses, the impact of recent or historically observed values on the predicted estimates can be determined compared to traditional predictive models, such as multiple linear regression. In the present study, a comparison of two types of regression analysis was performed: multiple linear regression and time series regression by the Holt-Winters method for the forecast of incident solar radiation and its reflectance on surfaces with anti-weed covers in two shades, and a surface without cover, for the production of plant biomass for agricultural purposes during one year.

2. Materials and methods

2.1 Study area

Solar radiation values were captured at the geographic coordinates 25º47’6.79” N and 100º 17’ 12.5” W at an altitude of 504 masl. The maximum and minimum temperatures in the area range between 29.5 and 17.3 ºC. The average annual precipitation is reported to be 422.8 mm (INEGI, 2024).

2.2 Solar radiation monitoring

The monitoring of global UV A and B radiation, incident photosynthetically active radiation (PAR), and their respective reflectance on various surfaces was recorded daily for one year, from August 2022 to July 2023. The recording of radiation during a day was made based on the solar angle 60º and –60º for solar height in a horizontal plane and 0º for the highest point of the sun (zenith), corresponding to 08:00, 12:00 and 16:00 solar or astronomical hours (Rehman and Halawani, 1997). In other words, radiation monitoring was conducted at three daily monitoring times over one year. Likewise, the monitoring time was adjusted using Duffie and Beckman’s (1991) equation of time (ET), allowing for the addition or subtraction of minutes to solar time due to differences in the Earth’s translational motion speed (Table I). On the other hand, Mexico has four time zones. In the northern zone, the study site is located in the central time zone; therefore, we used the time zone based on the 90º meridian to adjust the civil time (CT) formula of Méndez-Pérez and Gómez-Azpeitia (2015).

Table I. Models for adjusting the rotation time of the Earth.

Variable	Model	Where
Equation of time	ET = 9.87 sin 2ƒ – 7.53 cos ƒ – 1.5 sin ƒ	ƒ = 360 ( – 81)/364 (in degrees) JD: Julian day
Civil time of Mexico	CT = TSV – ET – 4(L – L’)	TSV: true solar time; ET: equation of time; L: geographic reference longitude; L’: geographic longitude of the site



2.3 Evaluated surfaces and manual sensors

The evaluated surfaces were covered with polypropylene anti-weed nets and classified into three categories: covered with white polypropylene anti-weed nets (WPN), covered with black polypropylene anti-weed nets (BPN), and soil without cover (SWC). They were established in divided plots of 9 m² each (Fig. 1a) without shade interference from buildings or trees at any time of the day.

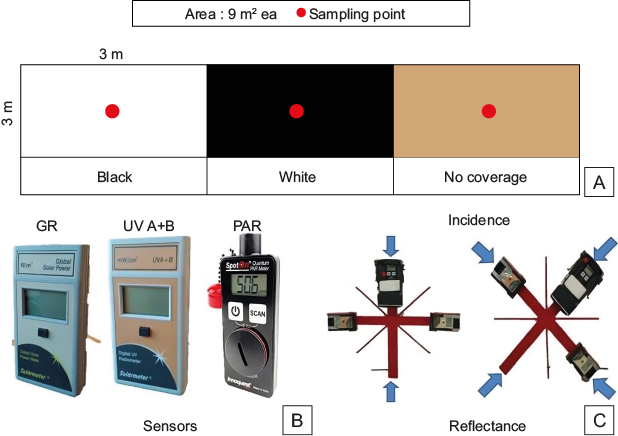

Fig. 1. (a) Evaluated surfaces covered with anti-weed netting and uncovered soil, (b) manual sensors, and (c) base for capturing incident and reflected radiation.

Daily solar radiation incidence and reflectance values were captured simultaneously with a portable solar meter sensor for global radiation (GR) (Solarmeter model 10.0), UV A + B radiation with a sensitive UV A + B meter (Solarmeter model 5.7), and photosynthetically active radiation (PAR) with a quantum meter (Spot0n Quantum PAR Light Meter 35650), with an accuracy of ± 80º from the vertical position of each sensor.

The sensors (Fig. 1b) were placed on a structure equipped with a set of fins that rotated around an axis, allowing the capture of solar radiation incidence and reflectance data at different tilt angles with respect to the zenith, as shown in Figure 1c. The rotating base was positioned 1 m above the surface, elevated from the lower end of the base, to collect the reflected radiation. On the other hand, the site’s climatic values (cloudiness, temperature, and relative humidity) were obtained at the same frequency as solar radiation monitoring using a hygrothermometer (Extech Instruments 445702) located at the study site facilities.

2.4 Descriptive analysis of incident solar radiation and statistical comparison of its reflectance.

Incident GR, UV A + B radiation, and PAR were analyzed over the year, identifying the maximum, minimum, and average values obtained at the sampling points. On the other hand, the reflectance of the evaluated surfaces was analyzed based on Jacobson’s albedo index (Jacobson, 1999). The indices are key to evaluating the balance of solar radiation on the surface and its impact on the environment, allowing for the determination of solar radiation energy use (Iturbide, 2020) and its application in various agricultural activities. Likewise, the amount of reflected radiation on the evaluated surfaces was compared using a Tukey test at a significance level of 95%.

(1)

2.5 Predictive models

Predictive models are a fundamental tool for understanding and predicting solar radiation over time at a specific site, which is crucial for informed decision-making in various agricultural activities. The ability to provide accurate estimates is a function of the precision and the amount of observed data, as well as the model that better fits the information obtained. There are several methods for analyzing and forecasting solar radiation. However, each model provides a different analytical perspective; therefore, two predictive models were employed in this research: the multiple regression model and the Holt-Winters model for time series analysis, as implemented in the R software (v. 3.6.0).

The analysis was performed using the sliding window method, which consists of analyzing a fixed-size section of data that is shifted along the time series. This method enables capturing the temporal evolution of a variable’s patterns in both training and test sets. The size of the sliding training window was 600 observations, and the test window consisted of 10 observations. The layout of the windows was visualized as follows: first training and test: X1, X2, X3,……X600 | X601,….X610; second training and test: X2, X3, X4,……X601 | X602,….X611.

Holt-Winters and multiple regression predictive models were performed on each sliding window and fitted to the previous observations for continuous analysis. Based on the above, a final model was obtained in each predictive method by fitting the individual models.

2.5.1 Multiple linear regression models

Multiple regression models were performed using the solar geometry parameters (Duffie and Beckman, 1991), the climate variables of the study site, and the monitoring times (Table II), which were significant in relation to the variables of incident solar radiation and its reflectance on the evaluated surfaces. The values were obtained simultaneously with the monitoring of solar radiation frequencies. The selection of independent variables was performed using the stepwise method, and the significant correlation between the independent variables was determined by the Spearman method at a significance level of p < 0.05.

Table II. Independent variables analyzed for solar radiation estimation models.

Solar geometry		Climate elements	Monitoring times
Solar height (SH)	Sen h = senδ senφ + cosδ cosφω where: h: solar altitude in degrees δ: solar declination in degrees φ: site latitude in degrees ω: hour angle in degrees	Cloudiness (C%)	Julian day (JD) from 1 to 365
Distance from the sun (DS)	(dm/DS)2 = 1 + 0.033 cos (2π/365 JD) where: d: distance from the Earth to the Sun in millions of km dm: mean distance: 149.6 million km JD: Julian day	Temperature ºC (T)	Civil time in decimals (CT)
		Relative humidity (RH%)



Subsequently, the dependent and independent variables were processed by standardizing the data to stabilize the variance before generating the models. Therefore, the abbreviations for solar height and earth to sun distance variables in the present investigation are indicated as SH and DS, respectively, to avoid confusion with the actual values obtained in the original formulas. The multiple regression model is expressed as follows:

(2)

where Y_i is the response variable, β₀ is the constant value, β₁,…,β_n are the regression coefficients, and X₁,…, X_n are the independent variables.

2.5.2 Time series

The GR, UV A + B, and PAR radiation values analyses performed during the year were distributed in a time series. The locally estimated scatterplot smoothing (LOESS) method was applied to the time series to develop a local smoothing curve, which visualizes the trends in the observed data over the course of the year. Then a test for changes in the half was performed using two methods: (a) the sctest function at a significance level of 95%, where p values < 0.05 indicate significant changes in radiation values over time. (Zeileis et al., 2002), and (b) the analytical formula of the segmented regression (y_t) based on the Bayesian information (BIC) and the sum of squares of residuals (RSS) widely used for model fitting by identifying the points of structural changes in the time series, so that it is possible to evaluate the variation of radiation over the year (Box et al., 2015)

(3-5)

where y_t is the dependent variable at time t, x_t is the independent variable at time t, β_0,1 and β_1,j are regression coefficients for segment j, ε_t is the error term at time t, and Ƭ₁ is the i-th change point.

(6)

where k is the number of model parameters, In(L) is the likelihood function of the estimated model, and n is the number of observations in the data.

2.5.3 Holt-Winters models

The Holt-Winters models were made based on the values of a single variable corresponding to global radiation, UV A + B, incident photosynthetically active radiation, and its reflectance on the evaluated surfaces. The formula predicts future values, considering the time series L, T, and S components (Bowerman et al., 2007).

(7)

where Lt is the level component, Tt is the trend component, and St is the seasonality component. Here, t represents the current time period, k is the number of steps ahead for forecasting (i.e., the forecast horizon), and m denotes the duration of the seasonal cycle.

The exponential smoothing factors range from 0 to 1, indicating the impact of observed values over time on the estimated values obtained using the Holt-Winters formula. Indices close to 0 indicate a more significant impact on past observations, while indices close to 1 indicate a greater weight on recent observations (Hyndman and Athanasopoulos, 2018). The formulas for updating the components based on the smoothing factors correspond to:

(8)

where α is the smoothing parameter for the level (0 < α < 1), y_t is the observed value at time t, and S_t-m is the seasonal component of the same period in the previous cycle (m periods back).

(9)

where β is the smoothing parameter for trend (0 < β ≤ 1) and L_t – L_t-1 is the change in level between periods t and t-1

(10)

where γ is the smoothing parameter for seasonality (0 < γ < 1) and y_t – L_t is the part of the observed value not explained by the current level.

The Holt-Winters analysis was performed by decomposing the additive time series, given the limited amount of observed data (< 1 year), assuming the seasonal component to be constant. Likewise, through decomposition, it is possible to observe patterns and trend changes according to the moving average and identify fluctuations that the model cannot explain (Hyndman and Athanasopoulos, 2018). On the other hand, a test for changes in structure was performed at a significance level of p < 0.05 to identify excessive fluctuations that would influence the model fits (Zeileis et al., 2002).

2.5.4. Comparison of predictive models

The predictive models were evaluated based on the performance metrics obtained from the forecast, considering the coefficient of determination R², the root mean square error (RMSE), the mean absolute error (MAE), and the mean absolute percentage error (MAPE), where:

(11)

(12)

(13)

(14)

where y_t represents the observed values, ŷ_i are the predicted values, Ȳ is the mean of the observed values, and T and n are the total number of observations.

Multiple metrics enable a more comprehensive evaluation of model performance by providing analysis from different perspectives. The values of R² indicate the fit of the models, while RMSE, MAE, and MAPE help identify different types of error, aiding in choosing a model that provides more accurate and reliable predictions (Yajure, 2023).

3. Results

3.1. Descriptive radiation analysis

The values of GR, UV A + B radiation, and PAR) (Fig. 2) presented maximum values in June with 753.7 ± 298.7 Wm^–2, 2.9 ± 1.6 m Wm^–2, and 1273.3 ± 525.8 µmol, respectively, and minimum values reported in November with 318.7 ± 362.8 Wm^–2, 1.2 ± 1.6 m Wm^–2 and 626.57 ± 650.36 µmol, respectively, corresponding to the monitored wavelengths.

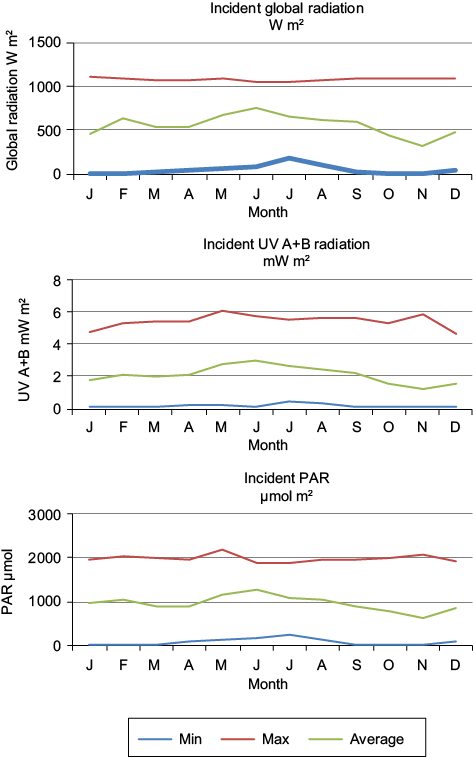

Fig. 2. Maximum, minimum, and average monthly values of GR, UV A + B, and incident PAR. (GR: global radiation; UV A + B: ultraviolet A and B radiation; PAR: photosynthetically active radiation.)

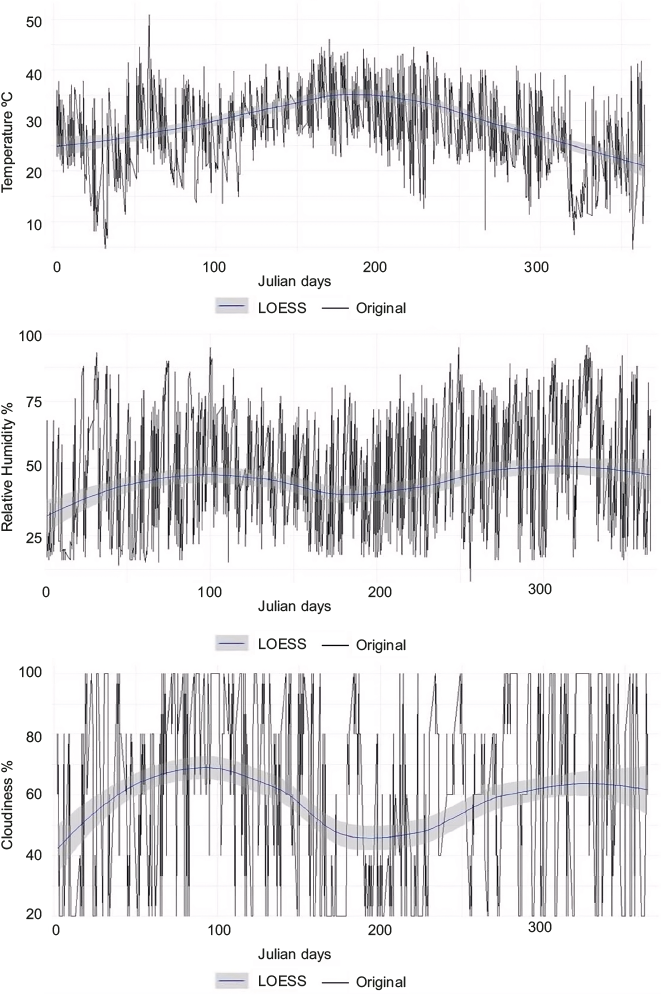

On the other hand, temperature ranges from 4.5 to 46 ºC and relative humidity from 8 to 96% were recorded (Fig. S1 in the supplementary material), registering an increase in the middle of the year when integrating the daily mean values. Relative humidity and cloudiness exhibited similar behavior, with their percentages decreasing as radiation and temperature values increased, and vice versa, as observed in the LOESS smoothing curve.

The reflected radiation on the WPN, BPN, and SWC surfaces exhibited a value of p < 0.05, so there is a statistically significant difference between half of the three surfaces corresponding to the different wavelengths evaluated, where the maximum values were in WPN with an annual average of 144.2 ± 110.1 Wm^–2 of GR, 0.09 ± 0.1 m Wm^–2 of UVA + B and 233.6 ± 181.4 µmol of PAR, followed by SWC with values of 79.4 ± 57.7 Wm^–2, 0.01 ± 0.03 m Wm^–2 and 70.7 ± 55.5 µmol, respectively. Meanwhile, BPN was observed at 36.8 ± 26.7 Wm^–2, 0.05 ± 0.01 m Wm^–2 and 54.1 ± 39.8 µmol, obtaining a higher absorbance percentage in the different wavelengths (Table III), reaching an albedo index of 0.14, similar to asphalt surfaces, concrete and urban areas according to Jacobson’s (1999) classification. The WPN obtained an index of 0.4, similar to that of old snow, while SWC registered 0.22 on average, similar to the classification ranges for soil.

Table III. Reflectance values and average solar radiation percentage absorption on screened surfaces and uncovered soil.

	GR Wm–2			UV A + B m Wm–2			PAR µmol
	Surfaces
	WPN	BPN	SWC	WPN	BPN	SWC	WPN	BPN	SWC
Min	3	0	2	0	0	0	6.4	0.5	2.3
Max	461	158	245	0.4	0.2	0.2	698	173	347.1
Absorbance (%)	60.6	90.9	78.4	96.3	96.8	99.6	64.5	92.9	81.3

GR: global radiation; UV A + B: ultraviolet A and B radiation; PAR: photosynthetically active radiation; WPR: white polypropylene anti-weed nets; BPN: black polypropylene anti-weed nets; SWC: soil without cover.

The sensors captured minimum values of zero in both GR and UV A + B on the different surfaces under completely cloudy sky conditions. This behavior can be attributed to the sensors’ sensitivity to radiation; the PAR sensor has a higher sensitivity capability, allowing it to capture radiation independently of weather conditions.

3.3. Normality tests

Normality tests of GR, UV A + B, and PAR incidence values, as well as their reflectance, presented a significance level of p < 0.05. Therefore, the observed values do not have a normal distribution. The normality histograms (Fig. 3) of GR and PAR show a bimodal distribution, indicating that the values present two more common values observed at the extremes of the histogram. In contrast, UV A + B presented a higher frequency in values close to zero. Based on the above, the observed values were standardized before the predictive models were performed.

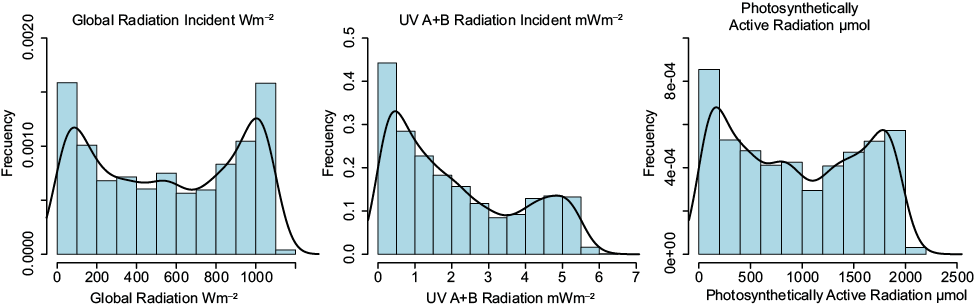

Fig. 3. Normality histograms of GR, UV A + B, and incident PAR. (GR: global radiation; UV A + B: ultraviolet A and B radiation; PAR: photosynthetically active radiation.)

3.4. Predictive models

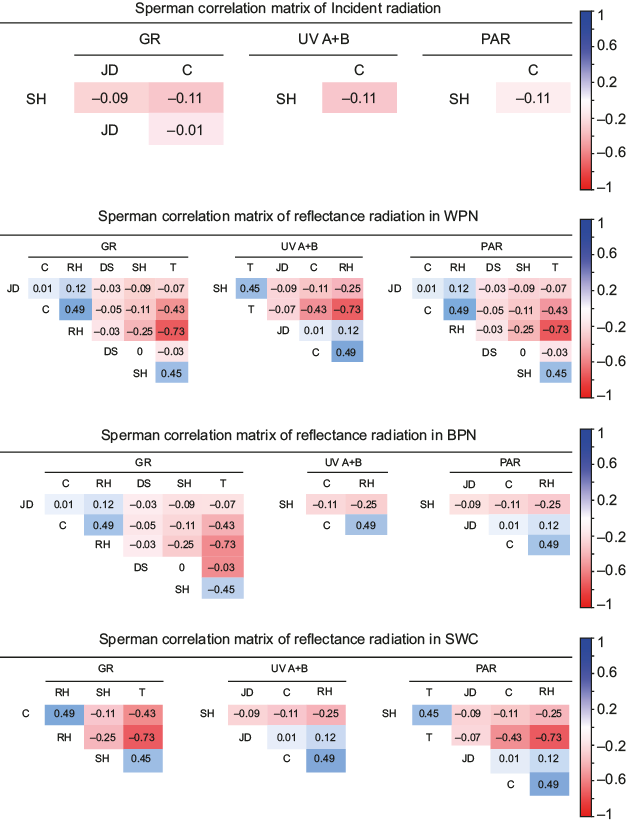

The results of the stepwise method indicated that the independent variables of solar height (SH), Julian day (JD), and cloudiness (C) were significant for incident solar radiation (Fig. S2 in the supplementary material). On the other hand, in addition to the variables mentioned above, relative humidity (RH), distance from the Earth to the Sun (DS), and temperature (T) are included in the reflective solar radiation, whereas civil time (CT) was not found to be significant. However, Pearson’s correlation test indicated a high correlation (p > 0.7) between RH and T, so RH was excluded to avoid the multicollinearity effect in the prediction models, that is, the high correlation between two or more variables that would make difficult to estimate the values (Villegas-Guerrero et al., 2024).

3.4.1. Multiple regression models

The multiple regression models generated for the different lengths and movement of incident radiation (Fig. 4 and Table IV) and reflecting radiation (Table V) were obtained from the independent variables significant in relation to radiation, as well as from the model adjustments performed using the sliding window method. The final models obtained R² values ranging from R² > 0.50, providing an adequate fit due to the high relationship between the independent variables which presented a high correlation with the variable of interest, allowing accurate estimates to be obtained, except for UV A + B, which is reflected in SWC. It is worth mentioning that estimating incident radiation requires fewer independent variables compared to the radiation reflected on the different surfaces to obtain an adequate model fit (WPN, BPN, and SWC).

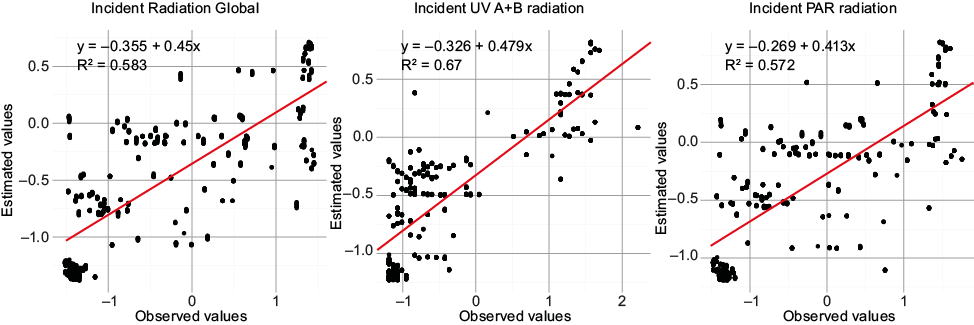

Fig. 4. Observed vs. predicted values of (a) global radiation, (b) UV A + B radiation, and (c) incident photosynthetically active radiation from the multiple regression models.

Table IV. Multiple regression models of incident solar irradiance.

Radiation		Model	R2
GR	=	–0.04 + 0.463 SH – 0.448 C – 0.061 JD	0.58
UV A + B	=	–0.051 + 0.692 SH – 0.284 C	0.66
PAR	=	–0.066 + 0.49 SH – 0.42 C	0.57

GR: global radiation; UV A + B: ultraviolet A and B radiation; PAR: photosynthetically active radiation; SH: solar height; C: cloudiness; JD: Julian day.

Table V. Multiple regression models of solar reflective radiation.

Surface	Radiation		Model	R2
WPN	GR	=	–0.06 + 0.587 SH + 0.026 DS – 0.048 C + 0.503 T + 0.163 JD	0.69
	UV A + B	=	–0.109 +0.63 SH – 0.125 C + 0.287 T + 0.239 JD	0.49
	PAR	=	–0.06 + 0.609 SH + 0.027 DS – 0.152 C – 0.356 T + 0.121 JD	0.59
BPN	GR	=	–0.063 + 0.357 SH + 0.027 DS – 0.102 C + 0.525 T + 0.002 JD	0.60
	UV A + B	=	–0.076 + 0.439 SH – 0.126 C – 0.186 RH	0.37
	PAR	=	–0.053 + 0.403 SH – 0.119 C – 0.395 RH – 0.077 JD	0.36
SWC	GR	=	–0.034 + 0.58 SH – 0.148 N + 0.318 T	0.66
	UV A + B	=	–0.044 + 0.392 SH – 0.088 C – 0.083 RH + 0.178 JD	0.15
	PAR	=	–0.081 + 0.505 SH – 0.286 C + 0.236 T + 0.005 JD	0.52

WPR: white polypropylene anti-weed nets; BPN: black polypropylene anti-weed nets; SWC: soil without cover; GR: global radiation; UV A + B: ultraviolet A and B radiation; PAR: photosynthetically active radiation; SH: solar height; C: cloudiness; T: temperature; RH: relative humidity; JD: Julian day.

The SH variable increases solar radiation, indicating that the levels of the dependent variable are a function of the sun’s position throughout the day and the year. On the other hand, temperature positively affects radiation, while the increase in the values of C and RH results in its decrease.

3.4.2 Time series

The time series of the GR, UV A + B, and PAR obtained a value of p < 0.05 with the sctest function, indicating that there are changes in the mean radiation over the year. In addition, using the Bayesian information criterion (BIC) it is observed that in the different wavelengths, there are two points of structural changes indicated in the BIC and SSR graphs (Fig. 5).

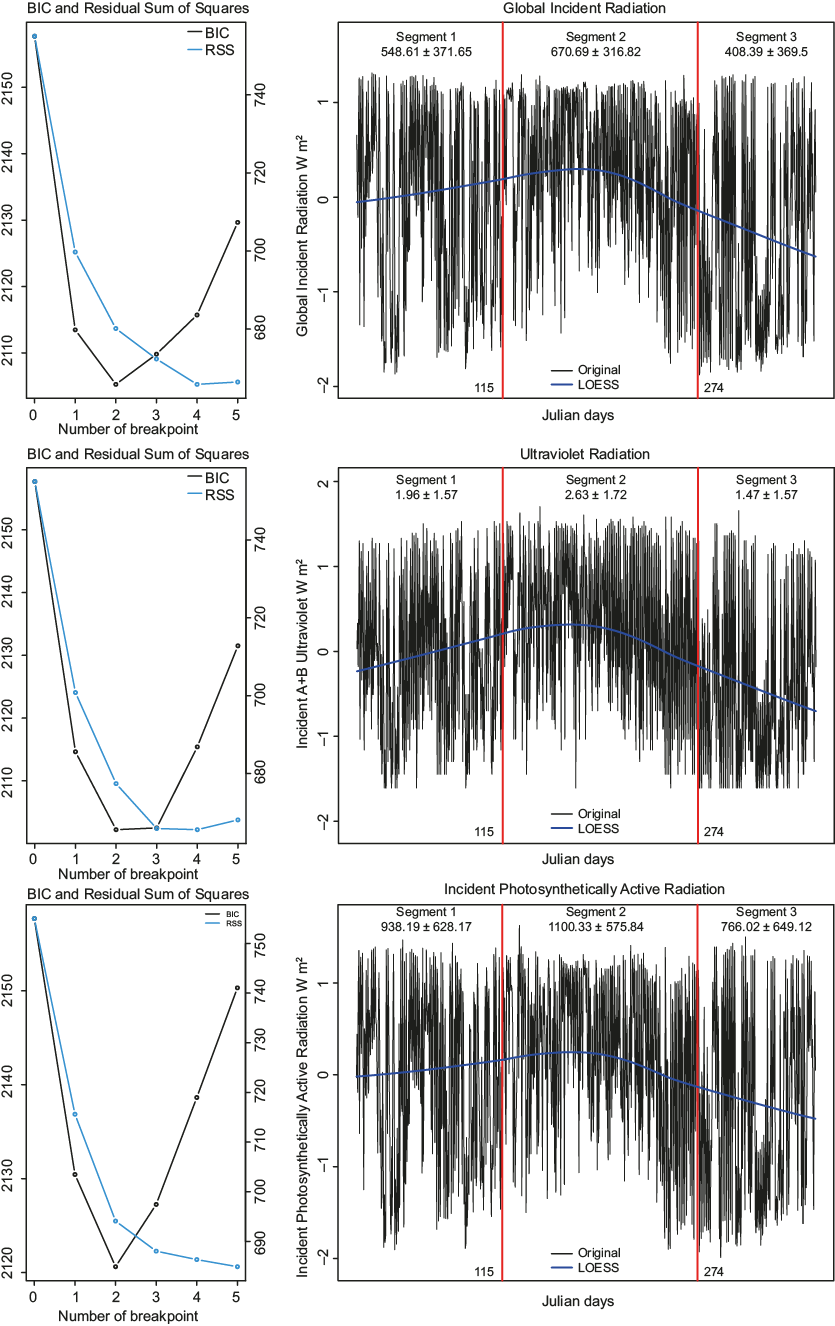

Fig. 5. Changes in the mean values of GR, UV A + B, and incident PAR presented in the time series and LOESS smoothing line. (GR: global radiation; UV A + B: ultraviolet A and B radiation; PAR: photosynthetically active radiation; LOESS: locally estimated scatterplot smoothing.)



The changes in the structure of the time series using the analítical formula of the segmented regression recorded trend changes in the values of the half radiation between 116 and 273 JD, dividing the time series into 3 segments. Likewise, the LOESS smoothing line allowed observing an asymmetric curve in segment 2, where a máximum value of the mean was obtained as shown in figure 6, followed by segment 1 from 1 to 115 JD, and the lowest values in segment 3 at the end of the year (274 to 365 JD), allowing a more precise analysis of the changes in radiation trends over the course of the year.

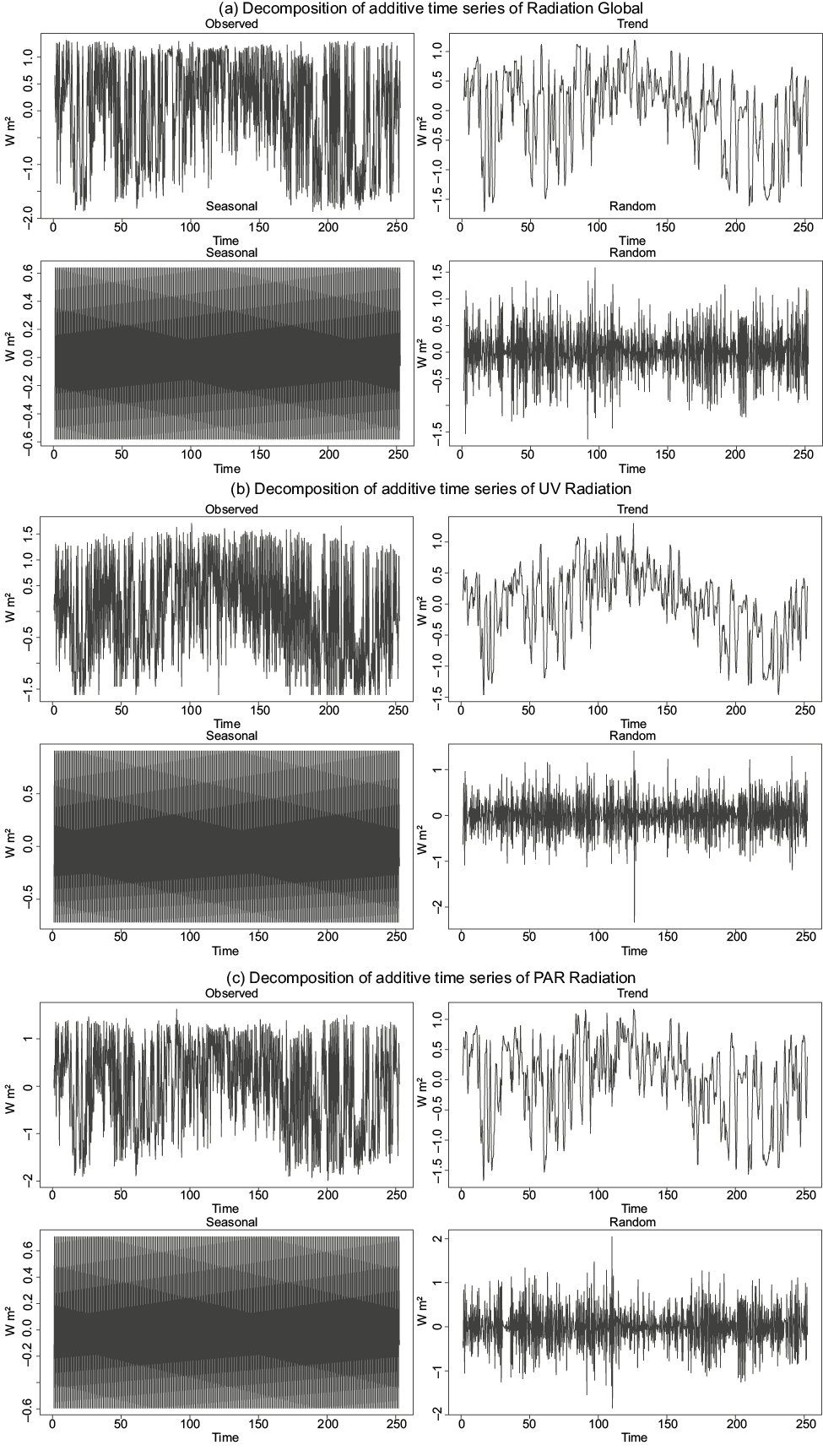

Fig. 6. Decomposition of the time series of (a) GR, (b) UV A + B, and (c) PAR. (GR: global radiation; UV A + B: ultraviolet A and B radiation; PAR: photosynthetically active radiation.)

3.4.2. Holt-Winters models

The decomposition graphs of the solar radiation time series (Fig. 7) do not show a positive or negative trend defined in the behavior of radiation over the year; however, it is possible to witness a greater intensity of radiation in the middle of the year corresponding to the summer season, similar to the movement of the solar declination at an angle of 23.45º. On the other hand, the error graph shows that every 50 days, there are approximately eight to 11 repetitive erratic movements generated by factors that the model cannot explain.

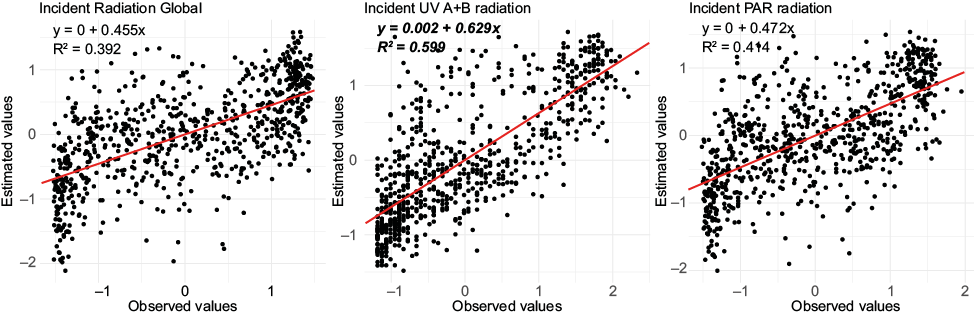

Fig. 7. Observed vs. predicted values of (a) GR, (b) UV A + B, and (C) incident PAR from the Holt-Winters models. (GR: global radiation; UV A + B: ultraviolet A and B radiation; PAR: photosynthetically active radiation.)

Tests for structural changes in the bands of agricultural interest showed a value of p > 0.05. Thus, it is established that values predicted by the Holt-Winters model do not exhibit significant changes, so the solar radiation analysis can be explained using a general model without requiring adjustments from multiple models.

The Holt-Winters models generated for the different lengths and movements of incident radiation (Fig. 7) and reflective radiation (Table VI) yielded a lower fit than the multiple regression models, with R² values between 0.12 and 0.68. In other words, the temporal order can explain between 3 and 30% of radiation behavior over the year. It is pertinent to note that Holt-Winters models are generated solely with the variable of interest, i.e., univariate, thereby excluding the effect of environmental variables.

Table VI. Holt-Winters models of incident and relativistic radiation.

Flow	Surface	Radiation	Model					R2
			L	T	S1	S2	S3
Incident		GL	–0.035	–0.001	–0.208	0.573	–0.365	0.39
		UV A + B	0.374	–0.036	–0.358	0.993	–0.634	0.55
		PAR	0.174	–2e-04	–0.325	0.817	–0.491	0.41
Reflected	WPN	GL	–0.011	–1e-04	–0.186	0.668	–0.482	0.68
		UV A + B	–0.346	6e-0.4	–0.221	0.796	–0.575	0.5
		PAR	–0.163	–6e-04	–0.163	0.722	–0.558	0.63
	BPN	GL	–0.075	0.012	–0.087	0.741	–0.654	0.49
		UV A + B	0.098	2e-04	–0.399	1.155	–0.756	0.44
		PAR	0.235	–0.001	–0.384	0.954	–0.570	0.55
	SWC	GL	–0.201	–3e-04	–0.297	0.901	–0.603	0.49
		UV A + B	–0.250	9e-04	–0.60	0.294	–0.134	0.12
		PAR	0.629	–0.001	–0.380	0.679	–0.298	0.38

L: level component; T: trend component; S: seasonality component; GR: global radiation; UV A + B: ultraviolet A and B radiation; PAR: photosynthetically active radiation; WPR: white polypropylene anti-weed nets; BPN: black polypropylene anti-weed nets; SWC: soil without cover.

The general model of incident radiation indicates a positive effect of the L or level component on the observed values, while the trend (T) generates a negative behavior (Table VI). On the other hand, the values of L and T in the reflectance vary for GR and UV compared to PAR. S1, S2, and S3 represent the effect of seasonality according to the number of periods corresponding to the monitoring time per day. S2 values represented by the zenith will obtain positive values, both in the incident and reflected radiation flux, compared to S1 and S3 when obtaining negative values due to the lower amount of radiation received at sunrise and sunset times, respectively.

The exponential smoothing factors alpha, beta, and gamma control the L, T, and S components, respectively, of the Holt-Winters model. In Table VII, all three factors have indices close to 0, i.e., changes in the level, trend, and seasonality of solar radiation, UV A + B, and PAR will be a function of historically recorded or older values (Hyndman and Athanasopoulos, 2018).

Table VII. Smoothing factors of the Holt-Winters model for time series.

Flow	Surface	Radiation	Factors
			α	β	γ
Incident		GR	0.19	1e-04	0.05
		UV A + B	0.06	1e-04	0.05
		PAR	0.13	1e-04	0.05
Reflected	WPN	GR	0.12	1e-04	0.07
		UV A + B	0.04	1e-04	0.06
		PAR	0.11	1e-04	0.03
	BPN	GR	0.04	1e-04	0.07
		UV A + B	0.04	1e-04	0.09
		PAR	0.16	1e-04	0.07
	SWC	GR	0.10	1e-04	0.04
		UV A + B	0.006	1e-04	0.11
		PAR	0.13	1e-04	0.09

GR: global radiation; UV A + B: ultraviolet A and B radiation; PAR: photosynthetically active radiation; WPR: white polypropylene anti-weed nets; BPN: black polypropylene anti-weed nets; SWC: soil without cover.

3.2.3. Model evaluation metrics

The performance of the models was evaluated using the RMSE, MAE, and MAPE metrics (Table VIII). The multiple regression model exhibited fewer large or outlier errors, achieving a lower RMSE than the Holt-Winters model while also yielding smaller errors, as indicated by the MAE. Nevertheless, the MAPE presented very high values in both models due to the transformation of the data.

Table VIII. Evaluation metrics of the pre-productive solar radiation models.

Flow	Surface	Radiation	Multiple regression			Holt-Winters
			RMSE	MAE	MAPE	RMSE	MAE	MAPE
Incident		GR	0.70	0.52	174	0.78	0.63	225
		UV A + B	0.60	0.44	62	0.64	0.50	165
		PAR	0.73	0.58	122	0.76	0.62	207
Reflective	WPN	GR	0.45	0.35	53	0.57	0.43	216
		UV A + B	0.65	0.47	109	0.63	0.47	263
		PAR	0.60	0.44	133	0.61	0.47	160
	BPN	GR	0.51	0.36	70	0.74	0.54	257
		UV A + B	0.72	0.54	60	0.76	0.51	259
		PAR	0.83	0.61	111	0.66	0.51	223
	SWC	GR	0.44	0.35	100	0.63	0.50	225
		UV A + B	0.79	0.47	103	0.92	0.50	184
		PAR	0.48	0.41	359	0.75	0.55	243

RMSE: root mean square error; MAE: mean absolute error; MAPE: mean absolute percentage error; GR: global radiation; UV A + B: ultraviolet A and B radiation; PAR: photosynthetically active radiation; WPR: white polypropylene anti-weed nets; BPN: black polypropylene anti-weed nets; SWC: soil without cover.

4. Discussion

Solar radiation is fundamental to atmospheric processes and crucial for life. Analyzing its behavior over time generates new challenges and opportunities to promote a more efficient and sustainable use of energy. In the present work, the amount of solar radiation in the lengths PAR and UV A + B reflected on surfaces covered with meshes used for weed control is analyzed to understand its fluctuations throughout the year from this perspective, which can be part of the decision-making process for using solar radiation resources in plants for agricultural purposes.

Over the last seven years, a significant increase in temperature and global radiation has been observed at the study site, compared to the data reported by Leal-Iga and Leal-Iga (2015), with differences of approximately 6 ºC and 0.45 kW h m^–2, respectively. Barnes et al. (2019) note that changes in ozone layer thickness are a factor that has significantly influenced the increase in solar radiation, causing climatic changes such as temperature increases, and consequently affecting the responses of different crops (Medina-García et al., 2020). Therefore, it is recommended to redesign strategies for utilizing solar energy in future generations of crops without compromising their growth and yields.

Land surfaces present modifications according to the use granted, causing changes in the absorption and reflectance of solar radiation (Moreno-Arteaga et al., 2021); this behavior can be observed in CN, CB, and SC surfaces with an evident difference in the amount of reflected radiation (Table III), with maximum absorbance values in CN. High absorbance values can interfere with other processes in the soil due to the large amount of energy converted into heat that modifies soil conditions (Ben-Othman et al., 2018); likewise, changes in the amount of radiation will influence photosynthate and stomatal aperture (Hernández-Pérez et al., (2021) resulting in better plant development compared to production without the installation of the material (Montemayor-Trejo et al., 2018).

The balance of solar radiation on each evaluated surface can be measured using the surface or terrestrial albedo (Jacobson, 1999), a measurement index that allows evaluating the radiation received in a horizontal plane or with a certain angle of inclination, being relevant in the values of net solar radiation (Iturbide et al., 2020). The variation in the indices is a function of the properties of each surface, such as materials, presence of moisture, material thickness, porosity, roughness, and amount of vegetation present, among others, which has been supported in recent decades by Hernández and Montaner (2009) and confirmed by the review provided by Zhang et al. (2022). On the other hand, BPN and WPN mulches are made of polypropylene; hence, the color or hue determines the difference in albedo due to the ability of light surfaces to reflect more radiation compared to dark surfaces (Cheela et al., 2021), having a significant effect on the yield and quality of agricultural products (Escobosa-García et al., 2022). However, this also depends on the wavelength measured.

The analysis of incident UV radiation is associated with effects on the morphological, anatomical, and biochemical characteristics of plants (Badmus et al., 2022; Bernardo et al., 2024), and its absorption from surfaces may degrade installed plastics over time (Burrows et al., 2024). Meanwhile, PAR has been analyzed to assess the development and nutrient status of various crops (Minetti and Rivas, 2020; Sandoval-Rangel et al., 2022). The modification of these lengths generates significant changes (positive or negative) in plants; hence some authors, such as Cabral et al. (2020) and Peñaranda et al. (2020), proposed practices to improve their distribution and promote vegetative growth. The present research provides another perspective of analysis of the amount of absorbed and reflected radiation of UV A + B and PAR that can occur in anti-weed nets during the year (Table III), providing complementary information to demonstrate the efficiency in the installation of mulch types, such as those observed by Escobosa-García et al. (2022).

The analysis and estimation of solar radiation through various predictive models facilitate decision-making for its optimal use in the agricultural sector, considering climate factors due to the highly statistically significant relationship. The relationship between these variables is reflected in several studies, such as Ocampo and Rivas (2013), who found that temperature, relative humidity, and cloudiness were the most influential variables for radiation estimation, with a high correlation (R² > 0.8) in most of the variables provided by weather stations.

On the other hand, Vélez-Pereira et al. (2015) compared the performance of simple and multivariate regressions, concluding that multiple regressions offered more apparent interpretations and ease of implementation, as well as a lower MAE margin when implementing the variables of temperature, humidity, and sunshine hours, similar to the highly correlated variables in the predictive multiple regression models obtained in the present study. Cloudiness and relative humidity in the model determine the values of solar radiation, i.e., in the presence of these two independent variables, a decrease in the dependent variable is estimated. Babar et al. (2019) referred to this behavior as the presence of various particles, such as water molecules, dispersed in the atmosphere, resulting in the scattering of light and, therefore, a decrease in solar radiation (Zhang et al., 2023).

Multiple regression models are considered pointwise, i.e., they do not require an order in time, making them a suitable tool for estimating solar radiation. However, their efficiency depends mainly on the selected independent variables and the accuracy of the observed values to achieve optimal model performance. However, the increase in radiation in recent years underscores the need for a more comprehensive analysis as a function of time.

The time series is a set of observations used to analyze the behavior of the variable of interest, to identify trends, points of changes in the mean, and errors in the course (Mejía-Vásquez and González-Chávez, 2019) as the random fluctuations observed in the decomposition of solar radiation (Fig. 6) due to the movement of the Earth around the Sun, which has been proven and described previously. Likewise, Arunkumar et al. (2021) mentioned that this variation is also a function of day length, sun altitude, and environmental conditions according to the month and day of the year, so that the significant variability of energy captured by the sensors, both incident and reflected on the evaluated surfaces (WPN, BPN, and SWC) can be explained by these factors. Based on the above, it is possible to make predictions of radiation in the short, medium, and long term using various predictive models (Mazen et al., 2023), such as the Holt-Winters model.

Holt-Winters models are widely used due to their ability to handle diverse data sets, providing a good fit and low levels of standard error; however, their effectiveness varies depending on the accuracy and data management, as presented by Vesga-Ferreira et al. (2022) when implementing the model for forecasting meteorological variables using monthly average data from two years of observed data. Valderrama-Balaguera et al. (2021) conducted 30 years of daily monitoring to predict precipitation, noting that estimating new values is more important with the most recent observed data. It is also observed that with a high frequency of data, it is possible to make modifications to the model by identifying the points of change, increasing efficiency. This is in contrast with the radiation data obtained in this research, where the estimated values are based on the oldest observed data (Table VII).

The predictive models were performed based on the monitoring times established in the study to obtain the estimated solar radiation at different times of the day during the year, which could result in a high dispersion of the data in the observed vs. predicted values plot (Figs. 4 and 7) due to the variability of daily weather condition. Additionally, the frequency of data is lower, that is, every four hours per day for a year, which would explain the low fit and the high standard error compared to models presented by other authors.

The accuracy of each model varies according to the variables implemented, as well as the amount of data recorded, resulting in different temporal behaviors due to geographic location. The study area lacks previous work on analyzing solar radiation using time series and regression models over a long and continuous time period. This is important at the local level due to the complexity of the climatic conditions of each mesoclimate, so that the data provided can be used as a basis to expand the effect of the environment on the established crops (Betancourt-Grandal et al., 2006; Cabello-Pasini et al., 2017).

Suradhaniwar et al. (2021) confirm the importance of uninterrupted monitoring to accurately anticipate agrometeorological parameters through algorithms in time series, which will significantly impact decisions made in the field. Even so, the two models have different perspectives for analyzing solar radiation, highlighting its importance in understanding and predicting new values. However, it is necessary to continue monitoring radiation in the area to adjust the predictive models.

5. Conclusion

The results indicate that the white polypropylene anti-weed nets reflected the highest amount of global radiation and PAR, while the black polypropylene anti-weed nets absorbed approximately 90% of the incident radiation. However, UV A + B radiation was absorbed similarly by the various surfaces evaluated, which could limit the accuracy of the multiple regression models, thus requiring more independent variables compared to the incident energy models, where only SH and C were significant. On the other hand, the incident solar radiation trend is independent of climatic seasons, showing two breakpoints in the mean values. Also, despite the limited data frequency or lack of historical information that influenced the low fit of the multiple regression and Holt-Winters models, both offer useful insights for the analysis of mesoclimates, so that they may be applicable in planning future strategies for the use of solar energy for crops.

Acknowledgments

The authors thank the Consejo Nacional de Humanidades, Ciencias y Tecnologías (CONAHCyT) and the Facultad de Agronomía of the Universidad Autónoma de Nuevo León (UANL) for providing the resources and land for the research.

References

Almorox J, Hontoria C, Benito M. 2005. Statistical validation of daylength definitions for estimation of global solar radiation in Toledo, Spain. Energy Conversion and Management 46: 1465-1471. https://doi.org/10.1016/j.enconman.2004.07.007

Arunkumar T, Raj K, Kabeel AE, Lee SJ. 2021. Effects of solar geometry and operation period on stability of solar desalination systems: A review. Environmental Science and Pollution Research 28: 65014-65032. https://doi.org/10.1007/s11356-021-16566-8

Babar B, Graversen R, Boström T. 2019. Solar radiation estimation at high latitudes: Assessment of the CMSAF databases, ASR and ERA5. Solar Energy 182: 397-411. https://doi.org/10.1016/j.solener.2019.02.058

Badmus UO, Ač A, Klem K, Urban O, Jansen MAK. 2022. A meta-analysis of the effects of UV radiation on the plant carotenoid pool. Plant Physiology and Biochemistry 183: 36-45. https://doi.org/10.1016/j.plaphy.2022.05.001

Barnes PW, Williamson CE, Lucas RM, Robinson SA, Madronich S, Paul ND, Bornman JF, Bais AF, Sulzberger B, Wilson SR, Andrady AL, McKenzie RL, Neale PJ, Austin AT, Bernhard GH, Solomon KR, Neale RE, Young PJ, Norval M, Rhodes LE, Hylander S, Rose KC, Longstreth J, Aucamp PJ, Ballaré CL, Cory RM, Flint SD, de Gruijl FR, Häder D-P, Heikkilä AM, Jansen MAK, Pandey KK, Robson TM, Sinclair CA, Wängberg SÅ, Worrest RC, Yazar S, Young AR, Zepp RG. 2019. Ozone depletion, ultraviolet radiation, climate change and prospects for a sustainable future. Nature Sustainability 2: 569-579. https://doi.org/10.1038/s41893-019-0314-2

Ben-Othman A, Belkilani K, Besbes M. 2018. Global solar radiation on tilted surfaces in Tunisia: Measurement, estimation and gained energy assessment. Energy Reports 4: 101-109. https://doi.org/10.1016/j.egyr.2017.10.003

Bernardo WP, Santos AR, Vale EM, Pireda S, Correia LZ, de Souza GAR, de Abreu DP, Carvalho LKO, Almeida FA, Baroni DF, Partelli FL, Bressan-Smith RH, Rakocevic M, Ramalho JC, Campostrini E, Rodrigues WP. 2024. UV-B reduction and excess: Management strategies regarding Coffea sp. crop. Scientia Horticulturae 323: 112499. https://doi.org/10.1016/j.scienta.2023.112499

Betancourt-Grandal M, Sistachs-Vega V, Sánchez-García C, García-Álvarez ME, Núñez-Vázquez M, Solano-Ojeda O, Noriega-Carrera C, Oliva-Díaz H, Acosta-Porta ZM, Delgado CG, Martín-Padrón ME. 2006. Influencia del mesoclima sobre la madurez de fruto de toronjo (Citrus paradise Macf.) en Cuba. Agricultura Técnica en México 32: 153-160.

Boscaini R, Robaina, AD, Peiter MX, Rodrigues PEC, Neto MC. 2019. Estimativa da radiação solar global para fins de manejo de irrigação. Revista Engenharia Na Agricultura 27: 498-507. https://doi.org/10.13083/reveng.v27i6.954

Box GEP, Jenkins GM, Reinsel GC, Ljung GM. 2015. Time series analysis: Forecasting and control. 5th ed. John Wiley & Sons, New Jersey, USA, 720 pp.

Bowerman BL, O’Connel RT, Koehler AB. 2007. Suavización exponencial. In: Pronósticos, series de tiempo y regresión: un enfoque aplicado (Bowerman BL, O’Connel RT, Koehler AB, Eds.). Cengage Learning Brooks/Cole, Mexico, 345-400.

Burrows S, Colwell, J, Costanzo S, Kaserzon S, Okoffo E, Ribeiro F, O’Brien S, Toapanta T, Rauert C, Thomas KV, Galloway T. 2024. UV sources and plastic composition influence microplastic surface degradation: Implications for plastic weathering studies. Journal of Hazardous Materials Advances 14: 100428. https://doi.org/10.1016/j.hazadv.2024.100428

Cabello-Pasini A, Macías-Carranza V, Mejía-Trejo A. 2017. Efecto del mesoclima en la maduración de uva nebbiolo (Vitis vinifera) en el valle de Guadalupe, Baja California, México. Agrociencia 51: 617-633. Available at https://www.scielo.org.mx/scielo.php?script=sci_arttext&pid=S1405-31952017000600617 (accessed 2024 Febrary 12)

Cabral RC, Vendruscolo EP, Martins MB, Zoz T, Costa E, da Silva AG. 2020. Material reflectante en bancos de cultivo y paja de arroz sobre el sustrato en la producción de plántulas de papaya. Revista Mexicana de Ciencias Agrícolas 11: 1713-1723. https://doi.org/10.29312/remexca.v11i8.2481

Camayo-Lapa BF, Condezo-Hurtado DE, Ramos-Cadillo AY, Massipe-Hernández JR, Camayo-Vivas AB. 2019. Estimación de la radiación solar global, mediante temperaturas extremas, aplicando el modelo Bristow-Campbell en la región Junín, Perú. Ingeniare. Revista Chilena de Ingeniería 27: 643-651. https://doi.org/10.4067/S0718-33052019000400643

Cheela VRS, John M, Biswas W, Sarker P. 2021. Combating urban heat island effect – A review of reflective pavements and tree shading strategies. Buildings 11: 93. https://doi.org/10.3390/buildings11030093

Contreras-Avilés CW. 2020. Fábrica de plantas con iluminación artificial para el cultivo y preservación sostenible de hierbas medicinales. Prisma Tecnológico 11: 3-10. https://doi.org/10.33412/pri.v11.1.2522

Contreras-Sepúlveda W, Galban-Pineda MG, Bustos-Márquez LF, Sepúlveda-Mora SB, Ramírez-Mateus JJ. 2021. Angström-Prescott empirical model to estimate solar radiation in Norte de Santander, Colombia. Revista de Investigación, Desarrollo e Innovación 11: 413-428. https://doi.org/10.19053/20278306.v11.n2.2021.12765

Duffie JA, Beckman WA. 1991. Solar engineering of thermal processes. Wiley-Interscience, Hoboken, New Jersey, 944 pp.

Escobosa-García I, Vázquez-Medina MM, Samaniego-Gámez BY, Valle-Gough RE, Vázquez-Angulo JC, Núñez-Ramírez F. 2022. Efecto del acolchado en repollo cultivado en el Valle de Mexicali. Revista Mexicana de Ciencias Agrícolas 28: 197-206. https://doi.org/10.29312/remexca.v13i28.3275

Estela-Urbina RO, Ríos-Campos CA, Santamaría-Baldera N, Gutiérrez-Valverde KS, Aguirre-Zaquinaula IR. 2019. Relación entre el comportamiento del viento y la radiación solar en la ciudad de Bagua, Perú (de marzo a octubre, 2019). Revista Latinoamericana de Difusión Científica 2: 22-31. https://doi.org/10.38186/difcie.22.04

Foroughbackch-Pournavab R, Bacópulos-Mejía E, Benavides-Mendoza A, Salas-Cruz LR, Ngangyo-Heya M. 2019. Ultraviolet radiation effect on seed germination and seedling growth of common species from northeastern México. Agronomy 9: 269. https://doi.org/10.3390/agronomy9060269

García-Acevedo F, Rojas-Serrano J, Vásquez-Vega A, Parra-Peñaranda D, Castro-Becerra E. 2016. Estimating missing data in historic series of global radiation through neural network algorithms. Sistemas & Telemática 14: 9-22. https://doi.org/10.18046/syt.v14i37.2239

Hernández-P J, Montaner-F D. 2009. Patrones de respuesta espectral. Facultad de Ciencias Forestales, Universidad de Chile 1-14.

Hernández-Pérez A, Torres-Olivar V, García-Santiago JC, Ibarra-Jiménez L. 2021. Efectos del color del acolchado plástico en la producción de melón: dos ciclos. Ecosistemas y Recursos Agropecuarios 8: e2758. https://doi.org/10.19136/era.a8n1.2758

Hyndman RJ, Athanasopoulos G. 2018. Forecasting: Principles and practice. 2nd ed. OTexts, Melbourne, Australia, 382 pp.

Iturbide P, Stern V, Righini R, Aristegui R. 2020. Evaluación del albedo en la estación solarimétrica de Luján, suelo característico de la pampa húmeda. Avances en Energías Renovables y Medio Ambiente 24: 223-231.

Jacobson M. 1999. Fundamentals of atmospheric modeling. Cambridge University Press, New York.

Leal-Iga J, Leal-Iga C. 2015. Solar radiation in urban projects: Financial analysis of a photovoltaic system for a habitation house in the metropolitan area of Monterrey, Nuevo León, Mexico. Revista de la Construcción 14: 30-40. https://doi.org/10.4067/S0718-915X2015000300004

Lycoskoufis I, Kavga A, Koubouris G, Karamousantas D. 2022. Ultraviolet radiation management in greenhouse to improve red lettuce quality and yield. Agriculture 12: 1620. https://doi.org/10.3390/agriculture12101620

Mazen FMA, Shaker Y, Abul-Seoud RA. 2023. Forecasting of solar power using GRU –Temporal fusion transformer model and DILATE loss function. Energies 16: 8105. https://doi.org/10.3390/en16248105

Medina-García G, Echavarría-Cháirez FG, Ruiz-Corral JA, Rodríguez-Moreno VM, Soria-Ruiz J, Mora-Orozco C. 2020. Efecto del calentamiento global sobre la producción de alfalfa en México. Revista Mexicana de Ciencias Pecuarias 11: 34-48. https://doi.org/10.22319/rmcp.v11s2.4686

Mejía-Vasquez EJ, González-Chávez S. 2019. Predicción del consumo de energía eléctrica residencial de la región Cajamarca mediante modelos Holt-Winters. Ingeniería Energética 14: 181-191.

Mena-Lorenzo JL, Díaz-Pita AL, Aguilar-Díaz R. 2018. Efecto de la densidad de población en el desarrollo y distribución de la biomasa del girasol, variedad Caburé-15. Revista de Ciências Agrárias. 41: 23-35. https://doi.org/10.19084/RCA17248

Méndez-Pérez I, Gómez-Azpeitia G. 2015. Conceptos generales. In: Prontuario solar de México (Tejeda Martínez A, Gómez-Azpeitia G, Eds.). Universidad de Colima-Universidad Veracruzana, Colima, Mexico, 11-31.

Minetti L, Rivas DM. 2020. Efecto de la captación de la radiación durante el periodo crítico sobre el rendimiento de grano de trigo y triticale en la región semiárida pampeana. Semiárida 30: 55.

Montemayor-Trejo JA, Suárez-González E, Munguía-López JP, Segura-Castruita MA, Mendoza-Villarreal R, Woo-Reza JL. 2018. Acolchados plásticos para la producción de maíz (Zea mays L.) forrajero en la Comarca Lagunera. Revista Mexicana de Ciencias Agrícolas 20: 4107-4115. https://doi.org/10.29312/remexca.v0i20.982

Moreno-Arteaga AJ, Neto-da Silva MM, Vidal-Mota G, Tapia-Aguirre SL, Barbosa-da Silva B. 2021. Análisis de componentes biofísicos del balance de radiación neta, usando teledetección, en la cuenca hidrográfica de Sorocaba con bosque Atlántico intervenido, Brasil. Investigaciones Geográficas 104: e60235 pp. https://doi.org/10.14350/rig.60235

Obando ED, Carvajal SX, Pineda Agudelo J. 2019. Solar radiation prediction using machine learning techniques: A review. IEEE Latin America Transactions, vol. 17: 684-697. https://doi.org/10.1109/TLA.2019.8891934

Ocampo D, Rivas R. 2013. Estimación de la radiación neta diaria a partir de modelos de regresión lineal múltiple. Revista Chapingo Serie Ciencias Forestales y del Ambiente 19: 263-271. https://doi.org/10.5154/r.rchscfa.2012.04.031

Ortiz-Solorio CA. 2015. Elementos de agrometeorología cuantitativa con aplicaciones en la República Mexicana. 7th ed. Texcoco, State of Mexico, Mexico, 327 pp.

Orozco-Santos M, Bermúdez-Guzmán MJ, García-Mariscal KP. García-Preciado JC. 2023. Uso de acolchados plásticos para reducir el impacto del huanglonbing y promover precocidad de la producción en limón mexicano. In: Agrária: Pesquisa e Inovação nas Ciências que Alimentam o Mundo, vol. X (Spers EE, Ed.). Artemis, Parana, Brazil, 142-161. https://doi.org/10.37572/EdArt_30112305512

Peñaranda JC, Rodrigo GC, Ticona-Bustillos AR, Valenzuela EC, Ramos S, San-Martín A, Ghezzi FG, Almanza GR. 2020. Variation in concentration of flavonoids and chlorophyll, and changes on morphology and foliar anatomy, due to visible (PAR) or ultraviolet (UVA, UVB) radiation in Baccharis latifolia. Revista Boliviana de Química 37: 210-222. https://doi.org/10.34098/2078-3949.37.5.1

Prescott JA. 1940. Evaporation from a water surface, in relation to solar radiation. Transactions of the Royal Society of South Australia 64: 114-118.

Quintero-Arias DG, Acuña-Caita JF, Asensio C, Valenzuela JL. 2021. Ultraviolet transparency of plastic films determines the quality of lettuce (Lactuca sativa L.) grown in a greenhouse. Agronomy 11: 358. https://doi.org/10.3390/agronomy11020358

Sánchez del Castillo F, Moreno Pérez EC. 2017. Diseño agronómico y manejo de invernaderos. Cap. IV: Factores climáticos y su efecto sobre los procesos fisiológicos. Universidad Autónoma Chapingo, Chapingo, Texcoco, Mexico, 122-143.

Sandoval-Rangel A, Cárdenas-Atayde PA, Benavides-Mendoza A, Robledo-Torres V. 2022. Estudios de efectividad biológica de ocho plásticos para invernadero en el cultivo de lechuga. Agraria 19: 27-33. https://doi.org/10.59741/agraria.v19i2.15

Sanjuán-Martínez J, Ortiz-Hernández YD, Aquino-Bolaños T, Cruz-Izquierdo S, Pérez-Pacheco R. 2022. Respuesta del chile huacle (Capsicum annuum L.) al estrés hídrico bajo invernadero. Agricultura, Sociedad y Desarrollo 19: 421-435. https://doi.org/10.22231/asyd.v19i4.1382

Soria Ruiz J, Ortiz Solorio CA, Islas Gutiérrez F, Volke-H V. 1998. Sensores remotos. Principios y aplicaciones en la evaluación de los recursos naturales. Experiencias en México. 1st ed. Sociedad Mexicana de la Ciencia del Suelo, Chapingo, Texcoco, Mexico.

Suradhaniwar S, Kar S, Durbha SS, Japarlapudi A. 2021. Time series forecasting of univariate agrometeorological data: A comparative performance evaluation via one-step and multi-step ahead forecasting strategies. Sensors 21: 2430. https://doi.org/10.3390/s21072430

Unigarro CA, Trejos-Pinzón JF, Acuña-Zornosa JR. 2021. Estructura y distribución lumínica en el dosel de dos progenies de café con ángulos foliares diferntes. Revista Cenicafé 72: e72104. https://doi.org/10.38141/10778/72104

Valderrama-Balaguera JC, Castro-Silva HF, Dávila-Carrillo CA. 2021. Pronósticos de variables climatológicas mediante los modelos de punto de cambio y Holt-Winters. Mundo FESC 11: 337-352. https://doi.org/10.61799/2216-0388.986

Vélez-Pereira AM, Vergara-Vásquez EL, Barraza-Coronell WD, Agudelo-Yepes DC. 2015. Evaluación de un modelo estadístico para estimar la radiación solar en Magdalena, Colombia. Tecno Lógicas 18: 35-44.

Vesga-Ferreira JC, Contreras-Higuera MF, Vesga-Barrera JA. 2022. Uso del modelo de Holt-Winters como estrategia para la predicción de condiciones ambientales durante el proceso de almacenamiento del Cacao. Revista EIA 19: 3820. https://doi.org/10.24050/reia.v19i38.1593

Villegas-Guerrero A, Ríos-Lara AJ, Vázquez-López JA, Tapia-Esquivias M. 2024. Análisis estadístico comparativo de regresión lineal multiple y análisis de componentes principales en una variable de respuesta en presencia de multicolinealidad. Pistas Educativas 45: 837-849.

Wang D, Ayars J, Makus D. 2021. White plastic and deficit irrigation improve pomegranate production. International Journal of Fruit Science 21: 868-882. https://doi.org/10.1080/15538362.2021.1939228

Wickham J, Barnes CA, Nash MS, Wade TG. 2015. Combining NLCD and MODIS to create a land cover-albedo database for the continental United States. Remote Sensing of Environment 170: 143-152. https://doi.org/10.1016/j.rse.2015.09.012

Yang D, Chen H, Song Y, Gong Z. 2017. Granger causality for multivariate time series classification. IEEE International Conference on Big Knowledge, Efei, China, 103-110. https://doi.org/10.1109/ICBK.2017.36

Yajure CA. 2023. Multi-criteria methodology based on data science for the selection of the optimal forecast model for residential electricity consumption. Scientia et Technica 28: 108-116. https://doi.org/10.22517/23447214.25335

Zárate-Martínez W, Arellano-García MA, Ramírez-Godina F, Moreno-León K, González-Sandoval DC. 2021. Evaluación de diferentes niveles de radiación sobre la densidad estomática de tomate (Solnum lycopersicum L.). Ecosistemas y Recursos Agropecuarios 8: e3009. https://doi.org/10.19136/era.a8n3.3009

Zeileis A, Leisch F, Hornik K, Kleiber C. 2002. Strucchange: An R package for testing for structural change in linear regression models. Journal of Statistical Software 7: 1-38. https://doi.org/10.18637/jss.v007.i02

Zhang X, Jiao Z, Zhao C, Qu Y, Liu Q, Zhang H, Tong Y, Wang C, Li S, Guo J, Zhu Z, Yin S, Cui L. 2022. Review of land surface albedo: variance characteristics, climate effect and management strategy. Remote Sensing 14: 1382. https://doi.org/10.3390/rs14061382

Zhang J, Hao Y, Fan R, Wang Z. 2023. An ultra-short-term PV power forecasting method for changeable weather based on clustering and signal decomposition. Energies 16: 3092. https://doi.org/10.3390/en16073092

Zhou X, Liu Y, Shan Y, Endo S, Xie Y, Sengupta M. 2024. Influences of cloud microphysics on the components of solar irradiance in the WRF-solar model. Atmosphere 15: 39. https://doi.org/10.3390/atmos15010039

Zuluaga-Gómez OA, Patiño-Quinchía JE, Valencia-Hernández GM. 2021. Modelos implementados en el análisis de series de tiempo de temperatura superficial e índices de vegetación: una propuesta taxonómica en el contexto de cambio climático global. Revista de Geografía Norte Grande. 78: 323-344. https://doi.org/10.4067/S0718-34022021000100323





Supplementary material



Fig. S1. Original daily values of temperature, relative humidity, and cloudiness at the study site and locally estimated scatterplot smoothing (LOESS) line.

Fig. S2. Pearson correlation matrix of principal components for prediction of GR, UV A + B, and reflective PAR in WPN, BPN, and SWC. (GR: global radiation; UV A + B: ultraviolet A and B radiation; PAR: photosynthetically active radiation; WPN: white polypropylene anti-weed net; BPN: black polypropylene anti-weed net; SWC: soil without cover.)
